MATERIALS / DLP
RigidClear
Clear DLP resin
← Back to material selection
MATERIAL OVERVIEW
Properties to guide your selection.

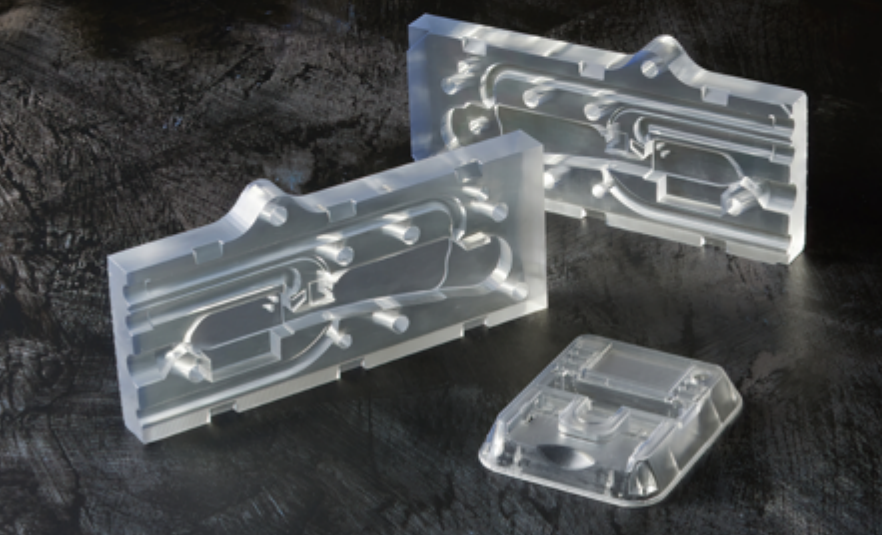

A clear general-purpose photopolymer for rigid transparent models. Polishing can improve optical appearance, with the result depending on geometry and the agreed finishing process.
Selection considerations
Confirm the required clarity rather than assuming optical-grade performance.
Discuss this material →| Printing process | DLP |
|---|---|
| Supplier-listed dimensional accuracy | ±0.05mm |
| Listed colours | Clear |
| Tensile strength | 60MPa |
| Tensile modulus | 2750MPa |
| Elongation at break | 8% |
| Flexural strength | 103MPa |
| Flexural modulus | 2750MPa |
| Heat deflection temperature | 69°C |
Heat deflection temperature is a test result, not a continuous-use temperature. Dimensional requirements are reviewed against the drawing.
